Xiaomi has joined the ranks of Apple, Google, and Samsung by developing its own in-house chipset. The Xiaomi Xring 01 specifications are quite impressive for a first-generation flagship SoC. It currently powers select smartphones available only in China.
In this post, let’s dive into the full Xiaomi Xring 01 specifications and what makes it a major step forward for the brand.
Xiaomi Xring 01 Specifications
Manufacturing Process
The Xiaomi Xring 01 is manufactured using TSMC’s second-generation 3nm N3E process, featuring an incredible 19 billion transistors. This process is more power-efficient and allows for greater performance compared to older 5nm or 4nm processes. The N3E variant in particular offers higher yields, better thermals, and improved transistor density—helping the chip deliver high speeds with less power consumption.
CPU Architecture

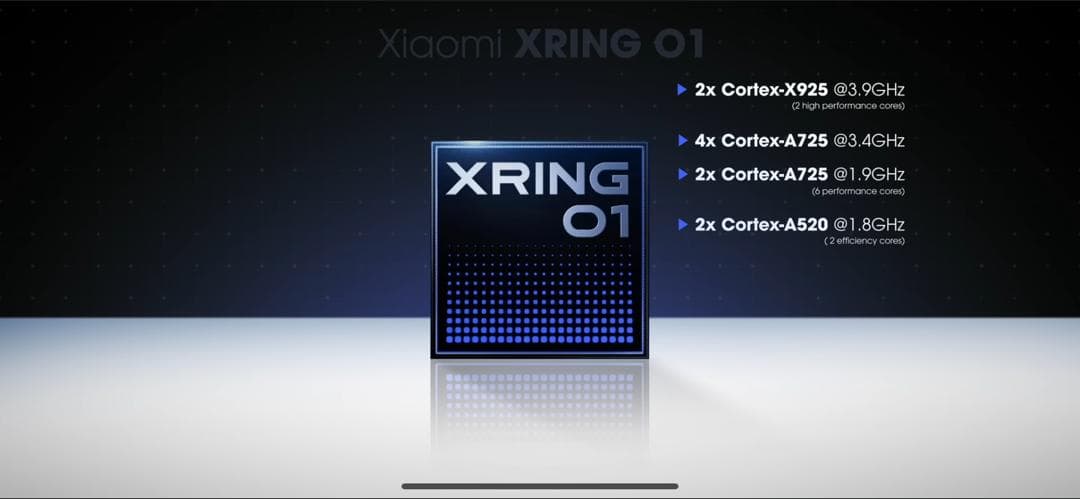

The CPU inside the Xring 01 is a 10-core architecture optimized for performance and efficiency.
- 2x Cortex-X925 @ 3.9GHz – High-performance "prime" cores for demanding tasks like gaming or rendering.
- 4x Cortex-A725 @ 3.4GHz and 2x Cortex-A725 @ 1.9GHz – Mid-performance cores for multitasking and sustained workloads.
- 2x Cortex-A520 @ 1.8GHz – Power-efficient cores for background tasks and battery-saving operations.
What Do These Cores Do?
- Cortex-X925: The latest high-performance ARM core, designed for top-end flagship SoCs. Offers massive IPC (instructions per cycle) improvements and better thermal control compared to its predecessor, the X4.
- Cortex-A725: A new generation of performance cores with better efficiency than the A710 and A720. They strike a balance between power and speed.
- Cortex-A520: These cores are optimized for energy efficiency, handling lightweight tasks while reducing battery drain.
GPU – Immortalis G925 MC16
The Xring 01 features the Immortalis G925 MC16 GPU, with 16 cores clocked at 1392 MHz. Immortalis GPUs are designed by ARM and built for flagship-level graphics, supporting hardware-accelerated ray tracing and Variable Rate Shading (VRS)—perfect for smooth gaming and rich visual experiences.
This GPU competes with Apple’s and Qualcomm’s top-end offerings, delivering excellent real-time rendering and efficient thermal management (although overheating has still been noted under stress).
NPU – 6-Core AI Engine (Up to 44 TOPS)
The Neural Processing Unit (NPU) in the Xiaomi Xring 01 delivers up to 44 TOPS (trillion operations per second). This means it can handle AI-based tasks—such as real-time language translation, camera scene detection, and voice recognition—with ease.
Advantages:
- Real-time AI video enhancement
- On-device AI (faster and more private)
- Improved voice assistant responsiveness
Shortcomings:
- High TOPS is great, but thermal throttling under prolonged load can limit sustained AI performance.
Connectivity & Memory
- 5G Support: Uses MediaTek T800 modem, although not integrated, which consumes more power—affecting battery life, especially during prolonged 5G use.
- RAM: Supports up to 16GB LPDDR5T RAM, running at 9600MT/s—about 13% faster than LPDDR5X.
- Storage: Supports up to 1TB with UFS 4.1 storage—fast read/write speeds for app loading and large file handling.
- Ultra-Wideband (UWB) support for enhanced device interconnectivity and spatial awareness.
Xiaomi Xring 01 Benchmark Scores
AnTuTu Benchmark:
- 2,571,077
Geekbench 6 Scores:
- Single-Core: 2,917
- Multi-Core: 9,114
These scores position the Xring 01 in the same league as other flagship SoCs, like Apple’s A17 Pro and Snapdragon 8 Gen 3.
Pros
- Blazing fast performance
- Excellent GPU capabilities
- Strong benchmark scores
- Advanced AI and connectivity support
Cons
- Overheating under prolonged load
- Decent but not industry-leading ISP (image signal processor)
- Power consumption issues during 5G usage due to external modem
Devices Using the Xiaomi Xring 01 Chipset
- Xiaomi 15S Pro
- Xiaomi Pad 7 Ultra
Conclusion
The Xiaomi Xring 01 specifications prove that Xiaomi is serious about competing at the top level in mobile chip innovation. While it’s not without flaws, the chipset lays a strong foundation for future versions. If this is what their first in-house chip looks like, Xring 02 might just be a game-changer.
